How it works

This document explains how the Responsible Vibe MCP Server integrates with AI coding agents to provide structured development workflows.

Architecture Overview

Responsible Vibe MCP is a Model Context Protocol (MCP) server that acts as an intelligent conversation coordinator for AI coding agents. It doesn't work standalone - it requires integration with an AI agent (like Claude, Amazon Q, or Gemini) that hosts the MCP server.

Key Components

1. AI Coding Agent: Your chosen AI assistant (Claude, Amazon Q, Gemini, etc.)
2. MCP Server: The responsible-vibe-mcp server running as a subprocess
3. System Prompt: Critical configuration that tells the AI how to use the MCP tools
4. Project Context: Development plans, conversation state, and project artifacts

Setup Requirement

🚨 System prompt configuration is essential - the AI agent needs specific instructions to interact with the MCP server properly.

Quick Setup: Use npx responsible-vibe-mcp --generate-config your-agent for automated configuration.

Manual Setup: Get the system prompt with npx responsible-vibe-mcp --system-prompt and configure your agent.

👉 For detailed setup instructions, see Agent Setup Guide

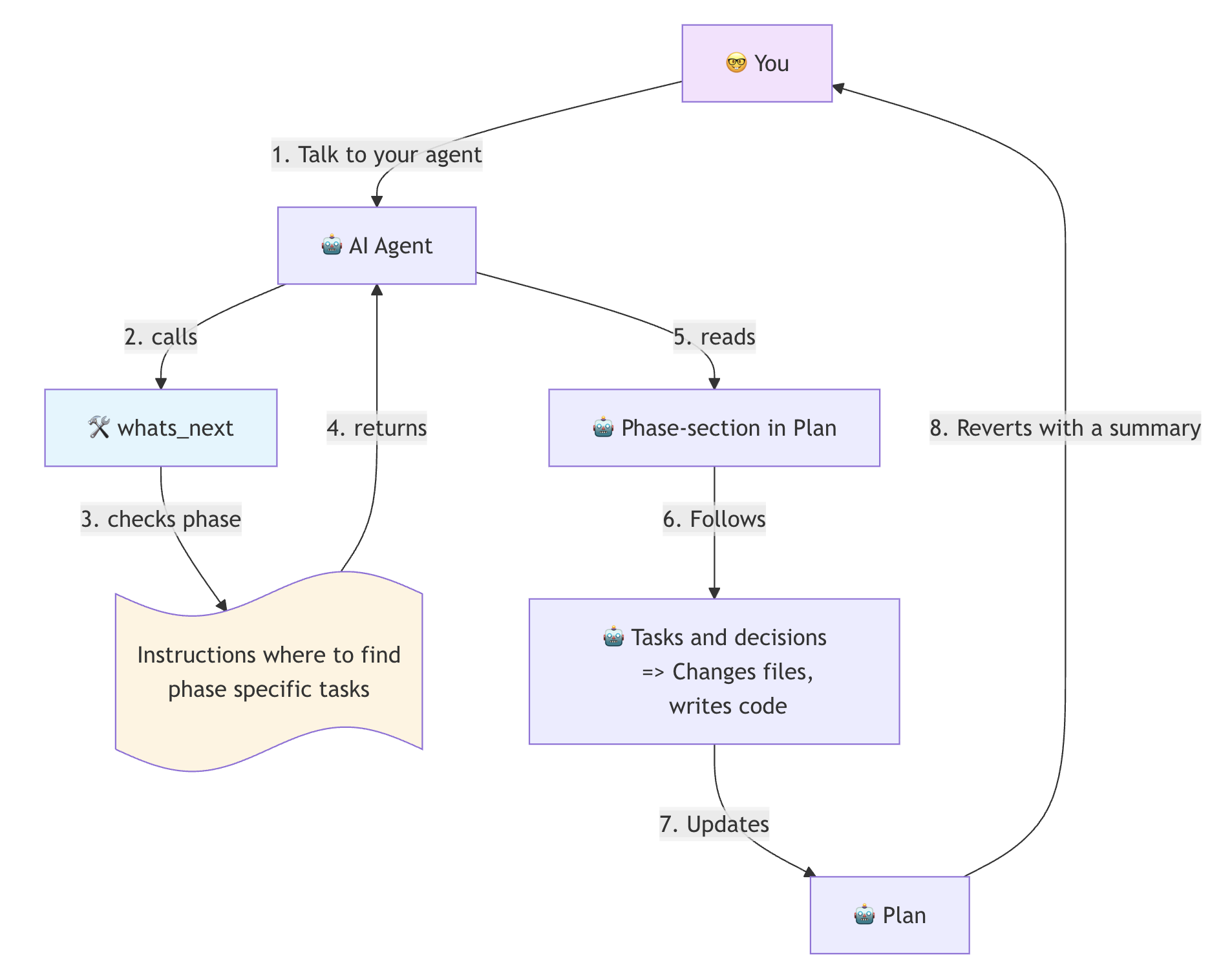

Core Interaction Pattern

Once configured, the integration follows this pattern:

Tool Usage Pattern

The AI agent automatically calls these tools based on the system prompt:

1. whats_next(): Called after each user interaction to get guidance
2. proceed_to_phase(): Called to transition between development phases
3. start_development(): Called once to begin a development workflow
4. Other tools: Used as needed for specific functionality

Stateless Design

The MCP server is stateless - the AI agent provides conversation context with each tool call, and plan files serve as persistent memory across sessions.

Phase Progression Flow

How Users Advance Through Development Phases

After development has been started, the responsible-vibe-mcp server guides users through a structured development process using a two-tool approach that gives users full control over phase transitions:

1. Continuous Guidance with whats_next

• LLM calls whats_next() after each user interaction
• Server analyzes current phase progress and plan file status
• Returns phase-specific instructions for what to do right now

2. Explicit Phase Transitions with proceed_to_phase

• When all tasks in a phase are complete, whats_next() suggests moving forward
• LLM uses proceed_to_phase() to explicitly transition to the next phase
• User maintains full control over pacing and can choose to refine current phase

Phase Progression Pattern

Example Phase Progression

Starting a New Feature

User: "I want to implement user authentication"
LLM: *calls whats_next()*
responsible-vibe-mcp: "New feature detected. Starting requirements analysis. Ask the user clarifying questions about WHAT they need for authentication..."

Working Within a Phase

LLM: *asks clarifying questions, updates plan file*
LLM: *calls whats_next()*
responsible-vibe-mcp: "Continue requirements gathering. You still need to clarify password policies and session management..."

Completing a Phase

LLM: *completes all requirements tasks*
LLM: *calls whats_next()*
responsible-vibe-mcp: "All requirements tasks are complete! ✅ You can proceed to design phase using 'proceed_to_phase' tool, or continue refining requirements if needed."

Transitioning to Next Phase

LLM: "Great! We've covered all authentication requirements. Let's move to design."
LLM: *calls proceed_to_phase(target_phase: "design", reason: "requirements complete")*
responsible-vibe-mcp: "Transitioning to design phase. Help the user design the technical solution. Ask about architecture, technologies, and quality goals..."

Phase Completion Indicators

Each phase is considered complete when:

• Requirements: All user needs documented, scope confirmed, tasks broken down
• Design: Technical approach defined, architecture decided, technology choices made
• Implementation: Core functionality built, code structured, basic testing done
• Quality Assurance: Code reviewed, requirements validated, documentation complete
• Testing: Test plans executed, coverage verified, feature validated

Refinement and Flexibility

Users can always choose to:

• Stay in current phase: Even when "complete," users can add more tasks or refine existing work
• Go back: Use proceed_to_phase to return to earlier phases if issues are discovered
• Skip ahead: In rare cases, jump to later phases if earlier work is already done

This approach ensures users maintain full control over the development process while receiving structured guidance from responsible-vibe-mcp.

Comprehensive Sample Interaction Flow

Overview

Detailed Dialogue Example

User: "I need to implement user authentication for my web app"

LLM: *calls whats_next(context: "user wants auth", user_input: "implement user authentication")*

Responsible-Vibe-MCP Response:
{
  "phase": "requirements",
  "instructions": "Analyze the user's authentication request. Ask clarifying questions about WHAT they need: What type of authentication? What user data? What security requirements? Break down their needs into specific tasks and add them to the development plan file at ./auth-feature-plan.md. Mark any completed requirements tasks as you progress.",
  "plan_file_path": "./auth-feature-plan.md",
  "transition_reason": "New feature request detected, starting requirements analysis",
  "completed_tasks": []
}

LLM: "I'll help you implement authentication! Let me understand your requirements better:

1. What type of authentication do you need? (email/password, social login, multi-factor?)
2. What user information do you want to store?
3. Do you have any specific security requirements?
4. What's your current tech stack?

*[Creates ./auth-feature-plan.md with initial authentication tasks]*"

User: "I need email/password auth with optional Google login. Store email, name, and profile picture. Using React frontend with Node.js backend."

LLM: *calls whats_next(context: "user clarified basic auth requirements", user_input: "email/password + Google, React/Node stack", conversation_summary: "User wants to implement authentication for web app, clarified basic requirements")*

Responsible-Vibe-MCP Response:
{
  "phase": "requirements",
  "instructions": "Continue gathering requirements. Ask about password policies, session management, user roles, forgot password flow, data validation. Update the plan file with detailed requirements. Mark basic requirements gathering as complete.",
  "plan_file_path": "./auth-feature-plan.md",
  "transition_reason": "Still in requirements phase, need more details",
  "completed_tasks": ["basic_auth_type_identified", "tech_stack_confirmed"]
}

LLM: "Great! Let me gather a few more details:

1. Any password complexity requirements?
2. How long should user sessions last?
3. Do you need user roles/permissions?
4. Need forgot password functionality?
5. Any specific validation rules for user data?

*[Updates plan file marking basic requirements as complete, adds detailed requirement tasks]*"

User: "Standard password rules, 24-hour sessions, just basic user role for now, yes to forgot password, standard email validation."

LLM: *calls whats_next(context: "requirements seem complete", user_input: "password rules, 24h sessions, basic roles, forgot password, email validation")*

Responsible-Vibe-MCP Response:
{
  "phase": "requirements",
  "instructions": "All requirements tasks are complete! ✅ You have documented: authentication type, user data, security requirements, tech stack, password policies, session management, user roles, and forgot password flow. You can proceed to design phase using 'proceed_to_phase' tool, or continue refining requirements if needed.",
  "plan_file_path": "./auth-feature-plan.md",
  "transition_reason": "All requirements tasks completed",
  "completed_tasks": ["requirements_documented", "user_confirmed_scope", "security_requirements_defined", "technical_constraints_identified"]
}

LLM: "Perfect! We've covered all the authentication requirements comprehensively. Let's move to the design phase."

LLM: *calls proceed_to_phase(target_phase: "design", reason: "requirements complete")*

Responsible-Vibe-MCP Response:
{
  "phase": "design",
  "instructions": "Help the user design the technical solution. Ask about database schema, API endpoints, security measures (JWT, bcrypt), third-party services for Google auth, error handling strategies. Ask about quality goals and specific technologies they prefer. Update the plan file with design decisions and mark completed requirements tasks as done.",
  "plan_file_path": "./auth-feature-plan.md",
  "transition_reason": "Explicit transition to design phase",
  "completed_tasks": []
}

LLM: "Perfect! Now let's design the technical solution:

**Database Design:**
- Users table: id, email, password_hash, name, profile_picture, google_id, role, created_at
- Sessions table: id, user_id, token, expires_at

**API Endpoints:**
- POST /auth/register
- POST /auth/login
- POST /auth/google
- POST /auth/forgot-password
- POST /auth/reset-password
- GET /auth/me
- POST /auth/logout

**Security Measures:**
- JWT tokens for session management
- bcrypt for password hashing
- Input validation and sanitization

Do you approve this design? Any changes needed?

*[Updates plan file with design details, marks requirements tasks as complete]*"

User: "Yes, looks good. Let's implement it."

LLM: *calls whats_next(context: "design approved by user", user_input: "approved design, ready to implement")*

Responsible-Vibe-MCP Response:
{
  "phase": "design",
  "instructions": "All design tasks are complete! ✅ You have defined the architecture, database schema, API endpoints, and security measures. You can proceed to implementation phase using 'proceed_to_phase' tool, or continue refining the design if needed.",
  "plan_file_path": "./auth-feature-plan.md",
  "transition_reason": "All design tasks completed",
  "completed_tasks": ["architecture_defined", "database_schema_designed", "api_endpoints_planned", "security_measures_defined"]
}

LLM: "Excellent! The design is solid and approved. Let's move to implementation."

LLM: *calls proceed_to_phase(target_phase: "implementation", reason: "design complete and approved")*

Responsible-Vibe-MCP Response:
{
  "phase": "implementation",
  "instructions": "Guide the user through implementing the authentication system. Start with backend setup (user model, middleware, API endpoints), then frontend components. Follow coding best practices, include proper error handling, and write basic tests. Update the plan file with implementation progress and mark completed design tasks.",
  "plan_file_path": "./auth-feature-plan.md",
  "transition_reason": "Explicit transition to implementation phase",
  "completed_tasks": []
}

LLM: "Let's implement this step by step:

**Step 1: Backend Setup**
First, let's set up the user model and authentication middleware...

```javascript
// User model
const userSchema = new mongoose.Schema({
  email: { type: String, required: true, unique: true },
  password_hash: { type: String, required: true },
  name: { type: String, required: true },
  profile_picture: String,
  google_id: String,
  role: { type: String, default: 'user' }
});

Step 2: JWT Middleware Here's the authentication middleware...

[Continues with implementation guidance, updates plan file]"

[Process continues through implementation, QA, and testing phases...]

## Development Workflow Examples

### Starting Development

Development must be explicitly initiated using the `start_development` tool, which allows users to select their preferred workflow:

start_development({ workflow: "your-preferred-workflow" })

Available workflows include various built-in options and custom workflows defined in `.vibe/workflow.yaml`.

> **Important**: The `start_development` tool must be called before any other tools (`whats_next`, `proceed_to_phase`, `resume_workflow`). This ensures that development follows a deliberate workflow selection process.

### Workflow-Agnostic Examples

#### Basic Feature Development
```javascript
// Start development with any workflow
start_development({ workflow: "feature-workflow" })

// LLM calls after each user interaction
whats_next({
  context: "user wants to add new feature",
  user_input: "implement feature X",
  conversation_summary: "Working on feature X implementation"
})

// When phase is complete, transition explicitly
proceed_to_phase({
  target_phase: "next-phase",
  reason: "current phase tasks completed"
})

Bug Fix Development

// Start with bug-focused workflow
start_development({ workflow: 'bugfix-workflow' });

// Continuous guidance through bug resolution
whats_next({
  context: 'investigating reported bug',
  user_input: 'users report login fails',
  conversation_summary: 'Debugging login failure issue',
});

Custom Workflow Development

// Use custom workflow definition
start_development({ workflow: 'custom' });

// Follow custom phase progression
proceed_to_phase({
  target_phase: 'custom-phase-name',
  reason: 'ready for custom workflow step',
});
